OBEX™ Grid

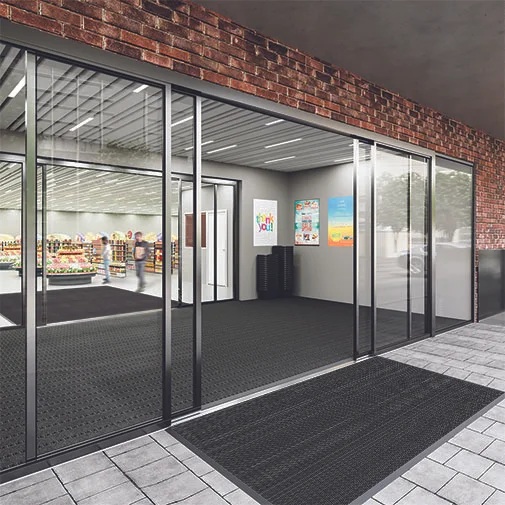

Designed especially for high-traffic areas, OBEX™ Grids provide lasting protection. Available in both open and closed constructions, Grids efficiently capture dirt and moisture from foot and rolled traffic entering the building. Grids are constructed with durable, easy-to-clean vinyl, and allow for OBEX material inserts.



Styles & Colors:

CutX 11mm Closed & Open

Mono 11mm Closed GRID%20CLOSED%20-%20GREY_t.jpg

Mono 11mm Closed & Open

Color Grey

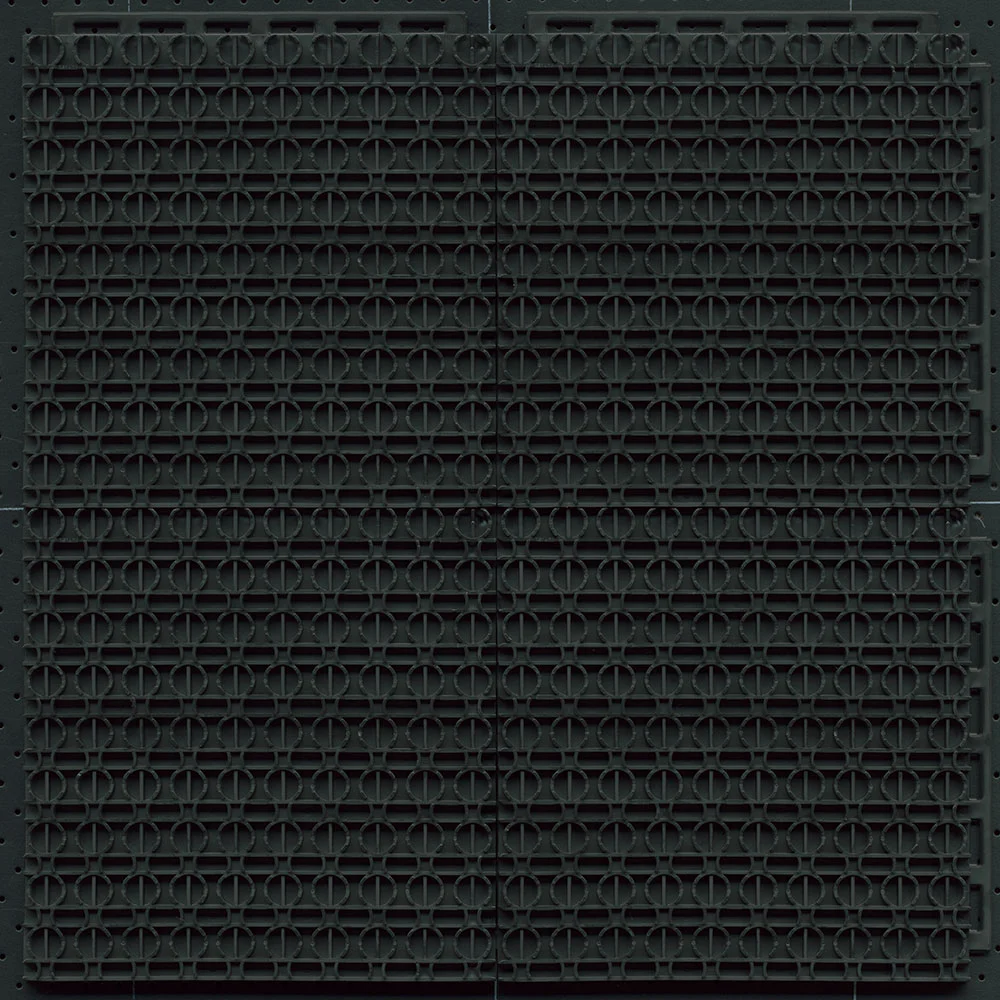

Vinyl 11mm Closed GRID%20CLOSED%20-%20BLACK_L.jpg

Vinyl 11mm Closed & Open

Color Black



Specifications

OBEX™ MONO

Grid Material: 100% UV-Resistant PVC

Grid Construction: 11O: Open or 11C: Closed

Total Thickness: 0.43” (11 mm)

Grid Size: 7.87” x 7.87” (200 mm x 200 mm)

Yarn Type: ECONYL® Nylon Monofilament Type 6

Textile Dye Method: Solution Dyed

Total Weight: 11O: 27.94 oz/ft2 (8,525 g/m2) 11C: 28.43 oz/ft2 (8,675 g/m2)

Outdoor Temperature Resistance: -22° F to +122° F (-30° C to 50° C)

OBEX™ VINYL

Grid Material: 100% UV-Resistant PVC

Grid Construction: 11O: Open or 11C: Closed

Total Thickness: 0.43” (11 mm)

Grid Size: 7.87” x 7.87” (200 mm x 200 mm)

Total Weight: 11O: 22.12 oz/ft2 (6,750 g/m2) 11C: 23.84 oz/ft2 (7,275 g/m2)

Outdoor Temperature Resistance: -22° F to +122° F (-30° C to 50° C)

OBEX™ CUTX

Grid Material: 100% UV-Resistant PVC

Grid Construction: 11O: Open or 11C: Closed

Total Thickness: 0.43” (11 mm)

Grid Size: 7.87” x 7.87” (200 mm x 200 mm)

Yarn Type: Milliken-Certified WearOn® Nylon and Monofilament, Type 6,6 and 6

Textile Dye Method: DDI (Digital Dye Infusion)

Total Weight: 11O: 28.35 oz/ft2 (8,650 g/m2) 11C: 28.84 oz/ft2 (8,800 g/m2)

Outdoor Temperature Resistance: -22° F to +122° F (-30° C to 50° C)
